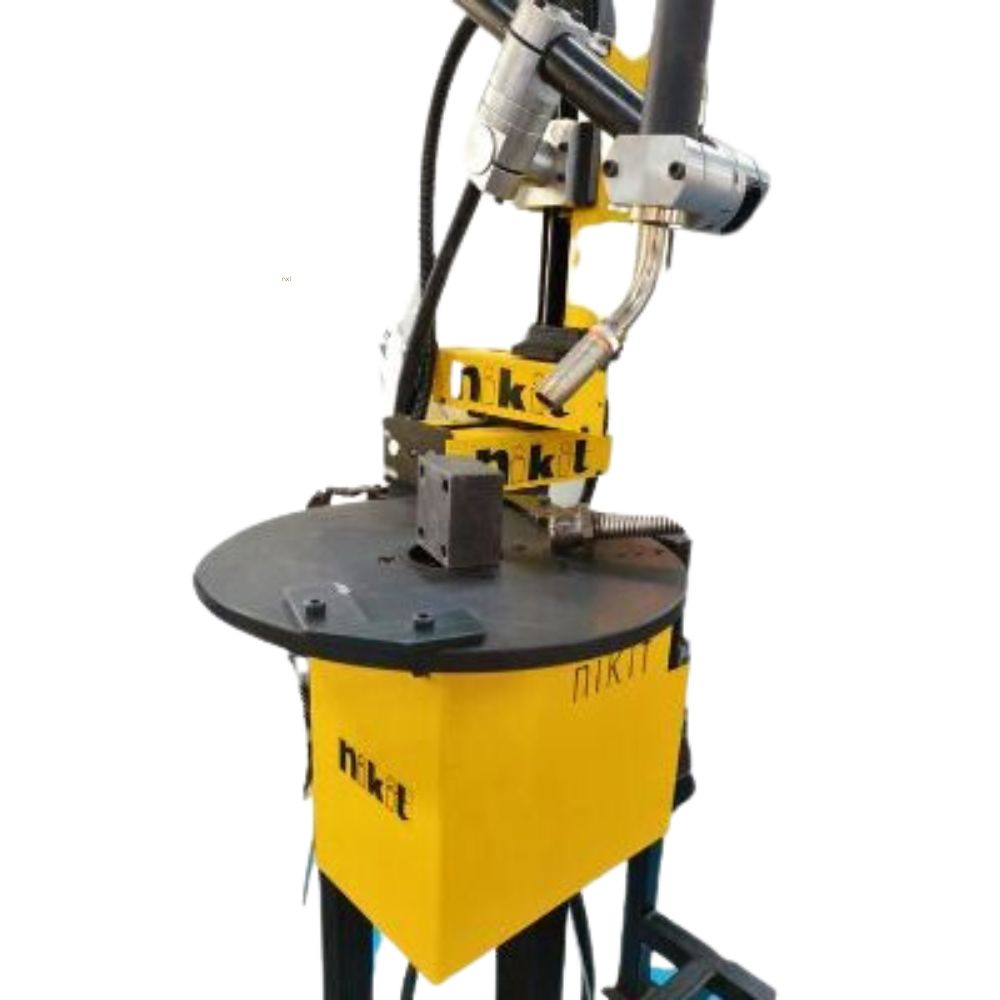

Introducing the revolutionary Mini Profile Welder, a specialized solution meticulously crafted for rotary components ranging from 10mm to 200mm in diameter, and rectangular profiles of up to 250mm. Our state-of-the-art system supports both Gas Metal Arc Welding (GMAW) and Gas Tungsten Arc Welding (GTAW), delivering unmatched versatility in welding techniques.
Featuring an unprecedented three linear axes and a single rotary axis, all fully automated, our Mini Profile Welder ensures seamless programming for intricate joints, be it linear or circular profiles. This unparalleled versatility makes it the ultimate welding solution.
Distinguishing itself as the only welder globally with an integrated online log mode, our system enables over-the-air software updates, ensuring the latest features and optimizations are always at your fingertips. Additionally, this functionality allows for remote support and training sessions, maximizing operational efficiency.
Compact and energy-efficient, consuming less than 200W, our Mini Profile Welder is designed for eco-conscious operations without compromising on performance. It’s a plug-and-play module, ready to revolutionize your welding processes with unparalleled automation capabilities in a compact form factor.
Elevate your welding experience with the Mini Profile Welder – the ultimate choice for automated robotic welding solutions. Discover efficiency, precision, and intuitive automation, all encapsulated in one innovative package.
Model : MPW – O – V8.1
- Machine size: 400mm x 400mm x 400mm
- Stroke x axis : 150mm ; y axis : 150mm ; z axis : 150mm & R : +/-360deg
- Weld speed : 15rpm ; 30mm/sec
- Motorised torch height adjustment: 100 mm
- Axis repeatability: +/- 0.2 mm
- Interpolation Repeatability : +/- 0.1 mm
- Touch User Interface – 7 inch Pharmaceutical Industry
WELDING APPLICATIONS
WELDING IN ACTION
